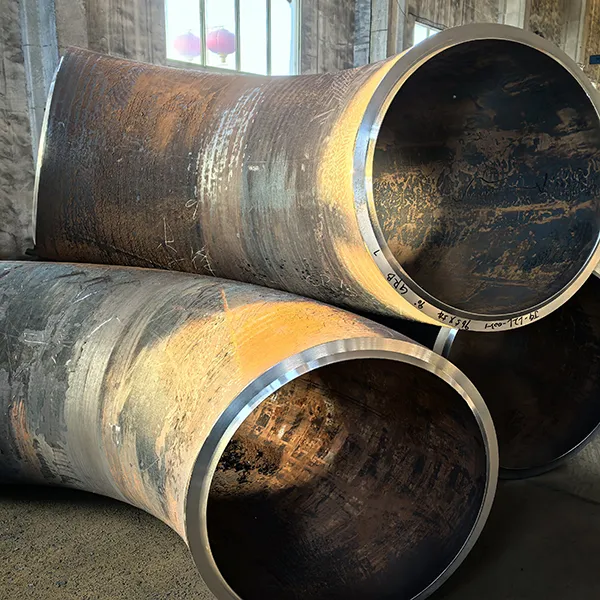

Elbow

Product Specification:

Type: Seamless / Welded

Size Range: 1/2” - 24” ( DN 21.3 - DN 610) for Seamless；

26” - 96” ( DN 660 - DN 2438.4) for Welded.

Wall Thickness: SCH 5S - XXS

Style: Long Radius (LR) / Short Radius (SR)

Angle: 45 Degree, 90 Degree, 180 Degree or in specified degree.

Standard:

ASME/ANSI B16.9, ASME B16.28, MSS SP43, DIN2605, DIN2617, DIN2516, JISB2311, etc.

Application:

Can be widely used in the field of Chemical,  Construction, Water Supply, Drainage, Oil, Light & Heavy Industries, Freezing, Sanitation, Fire Control, Electric Power, Aerospace, shipbuilding, etc.

Bend

Product Specification:

Type: Seamless / Welded

Size Range: 1/2” - 24” ( DN 21.3 - DN 610) for Seamless;26” - 80”( DN 660 - DN 2032) for Welded.

Wall Thickness: SCH 10 - XXS

Style: R=3D R=5D R=7D R=10D or specified Radius

Angle:  From 30 to 180 Degree or in specified degree.

Standard:

ASME B31.4, ASME 31.8, ASME B16.49, JIS, DIN, GB, HG, SH, JB, HGJ, etc.

Material:

Carbon steel, Low Temperature Carbon Steel, High Yield Carbon Steel, Alloy Steel, Stainless Steel.

C.S: ASTM/ASME A234 WPB / WPC, ST37.0, ST35.8, ST45.8

LTCS: A420 WPL6, ASTM/ASME A402 WPL3 / WPL6

HYCS: ASTM/ASME A860 WPHY 42 / 46 / 52 / 60 / 65 / 70

AS: ASTM/ASME A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP9 / WP91 / 15Mo3 / 15CrMoV / 35CrMoV

SS: ASTM/ASME A403 WP304 / 304L / 304H / 304LN / 304N  / 316L / 316H 321H / 347H

Cap

Size:NPS from 1/2'' to 48'', DN from 12 to 1200,WT: 2-80mm, SCH 40/80/XXS

Material:

Carbon Steel --- ASTM A234 WPB ANSI B 16.9, DIN 2606 N-5 ST.37.0;

Stainless Steel --- ASTM 403 304/304L, 316/316L,316Ti,321,317L,310S;

Alloy Steel --- ASTM A234 WP 1/5/9/11/12/22/91

Bend Radius: 2.5D/3D/4D/5D/6D/7D/8D/9D/10D

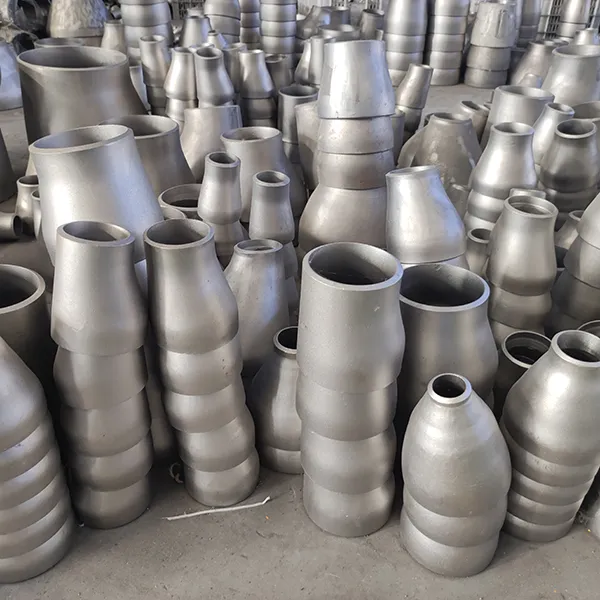

Reducer

Outside Diameter:

Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″)

Types: Concentric Reducers, Eccentric Reducers

Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40,STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Tee

Product Specification:

Type: Seamless / Welded Size Range: 1/2” - 24” ( DN 21.3 - DN 610) for Seamless;26” - 72” ( DN 660 - DN 1828.8) for Welded

Wall Thickness: SCH 20 - XXS

Style: Equal / Reducing

Process: Cold-Extruded / Hot-Pressed

Standard:

ASME/ANSI B16.9, GB/T12459, GB/T13401, DIN 2615, SH3408,

SH3409-96, SH3410-96, HG/T21635, DL/T 695, SY/T 0510, etc.

Material:

Carbon steel, Low Temperature Carbon Steel, High Yield Carbon Steel, Alloy Steel, Stainless Steel.

C.S: ASTM/ASME A234 WPB / WPC, ST37.0, ST35.8, ST45.8

LTCS: A420 WPL6, ASTM/ASME A402 WPL3 / WPL6

HYCS: ASTM/ASME A860 WPHY 42 / 46 / 52 / 60 / 65 / 70

AS: ASTM/ASME A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP9/ WP91 / 15Mo3 / 15CrMoV / 35CrMoV

SS: ASTM/ASME A403 WP304 / 304L / 304H / 304LN / 304N / 316L / 316H 321H / 347H

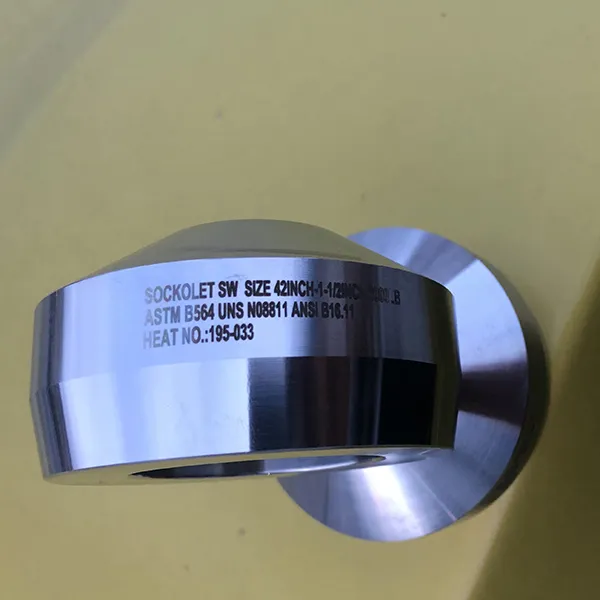

Sockolet

Sockolet have a socket into which a plain end. branch pipe is inserted, then fillet welded together. It is a type of self-reinforced branch fitting.

Dimensions：

Standard: MSS SP-97

Size: 1/4 to 4 Inch / DN6 to DN100

Pressure: 3000 LB and 6000LB

Alloy Steel: ASTM A182 F1, F5, F9, F11, F12, F22, F91

Carbon Steel: ASTM A105, A350 LF2,LF3. A694 F52, F60, F65, F70

Stainless Steel: ASTM A182 F304, F316, F317, F321, F310

Duplex Stainless Steel: ASTM A182 F51, F53, F55

Lap Joint Stub Ends

Size range: 1/2” to 36”

Grade: ASME/ASTM SA A234

Type: Long and short lap joint stub ends

Wall Thickness: Schedule 5s, 10s, 20s, Sch10, Sch20, Sch30, STD, Sch40 and etc.

standard of stub end:

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, ASTM A234, ASME SA234 WPB ,

WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Other Products: bolts, nuts, washers, expansion joints, connectors, etc.
