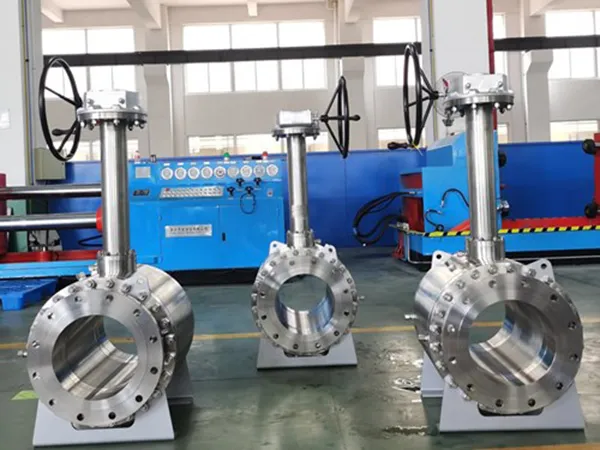

Ultra-low Temperature Ball Valve

Main features: The valve stem neck of the cryogenic valve adopts an extended structure, the purpose of which is to protect the packing and stuffing box, so that the working temperature of the packing is above zero degrees. It prevents the valve from failing due to the loss of elasticity of the packing under low-temperature operation. The extended neck design is also convenient for heat preservation operation. It is mainly used in ethylene, liquefied natural gas equipment, natural gas LPG LNG storage tanks, receiving bases and satellite stations, air separation equipment, petrochemical tail gas separation equipment, liquid oxygen, liquid nitrogen, liquid argon, carbon dioxide cryogenic storage tanks and tank trucks, pressure swing adsorption oxygen production equipment, etc.

Design standard: API 6D API 608 ISO 17292 BS 6364

Product range:

1:Pressure range: CLASS 150Lb~900Lb

2: Nominal diameter: NPS 1/2~24″

3: Main body material: stainless steel, alloy steel

4: Connection type: RF RTJ BW

5: Minimum operating temperature: -196℃

6:Operation mode: handle, worm gear, electric device, pneumatic device, hydraulic device, gas-liquid linkage device;

Product features:

1:Small fluid resistance, fireproof and anti-static structural design;

2:Floating ball or fixed ball structure can be provided as required;

3:Soft sealing valve seat, reliable sealing performance;

4:When fully open, the sealing surface is not eroded by the working medium;

5:Multiple sealing structure of the valve stem, good sealing performance;
