When it comes to industrial valve applications, understanding the differences between a bellow seal globe valve vs globe valve is crucial for selecting the right solution for your needs. Both valves serve similar purposes in controlling fluid flow, but their design, sealing mechanisms, and performance vary significantly.
A bellow seal globe valve, also known as a bellows-sealed globe valve, features a metal bellows welded to the valve stem and bonnet. This design creates a hermetic seal between the fluid medium and the atmosphere, ensuring zero leakage from the stem.
1. Zero Leakage Design: The metal bellows acts as a barrier, preventing hazardous media (toxic, flammable, or radioactive) from escaping, making it ideal for high-risk applications.
2. Long Service Life & Low Maintenance: The robust bellows seal eliminates the need for frequent packing replacement, reducing operational costs.
3. Smooth Operation with Low Torque: Requires less force to operate, making it easier to automate or use with actuators for remote control.
4. Superior Sealing Performance: Combines bellows sealing with graphite or stainless steel gaskets for enhanced leak-proof performance.
5. Energy Efficient: Streamlined flow path reduces resistance, improving efficiency.
A globe valve uses a traditional packing gland (typically graphite or PTFE) to seal the stem. While effective for general applications, it is prone to wear and leakage over time, especially under extreme temperatures or high-pressure conditions.
· Packing Wear & Leakage: The sliding motion between the stem and packing can lead to leaks, particularly with cryogenic or corrosive fluids.
· Higher Maintenance: Requires periodic repacking to maintain sealing integrity.
· Less Suitable for Hazardous Media: Not ideal for toxic or flammable substances due to potential fugitive emissions.
Due to their superior sealing, bellow seal globe valves are widely used in:
· Chemical & Petrochemical Plants (handling toxic or corrosive fluids)
· Power Generation (high-pressure steam systems)
· Hydrogen & LNG Systems (preventing fugitive emissions)
· Pharmaceutical & Nuclear Industries (where leakage is unacceptable)

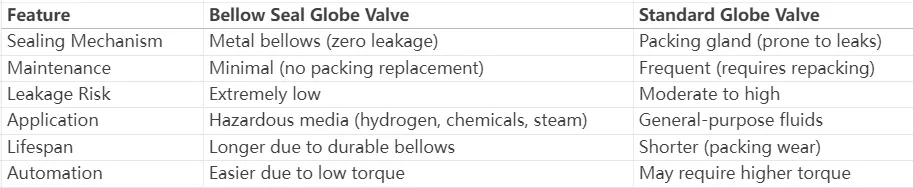

When comparing a bellow seal globe valve vs globe valve, the choice depends on safety, maintenance, and operational requirements. For zero-leakage performance in hazardous environments, the bellow seal globe valve is the clear winner. However, standard globe valves remain cost-effective for less critical applications.
By understanding these differences, engineers and procurement specialists can make informed decisions to enhance system reliability and safety.
