A wafer butterfly valve is a compact, cost-effective flow control device designed for quick shut-off and regulation in piping systems. Unlike lug-style valves, wafer valves are secured between flanges using bolts, making them ideal for lightweight applications where space is limited.
This guide explores the design, working principle, advantages, and key applications of wafer butterfly valves, helping you determine if they’re the right fit for your system.
A wafer butterfly valve consists of a circular disc mounted on a rotating shaft. When the valve handle or actuator is turned:
· Open Position: The disc rotates parallel to the flow, allowing unrestricted media passage.
· Closed Position: The disc turns perpendicular, blocking flow completely.
Due to their simple yet efficient mechanism, wafer butterfly valves are widely used in water treatment, HVAC, and chemical processing.
1. Space-Saving Design – Their slim profile fits tightly between flanges, reducing installation space.
2. Lightweight & Cost-Effective – Fewer materials mean lower costs compared to gate or globe valves.
3. Quick Operation – A 90-degree turn fully opens or closes the valve, enabling fast flow control.
4. Low Maintenance – With fewer moving parts, they require minimal upkeep.
5. Versatility – Available in materials like stainless steel, PVC, and ductile iron for different media.
· Water & Wastewater Treatment – Controls flow in pipelines and pumping stations.
· HVAC Systems – Regulates chilled and hot water distribution.
· Chemical & Petrochemical Industries – Handles corrosive fluids with lined discs (PTFE, EPDM).
· Food & Beverage Processing – Sanitary designs ensure contamination-free flow.

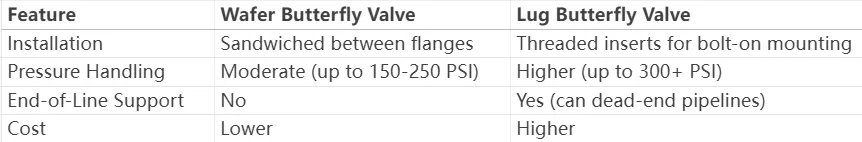

Best Choice?
· Wafer valves are ideal for mid-pressure systems with continuous flanged piping.
· Lug valves suit high-pressure or end-of-line applications.
1. Material Compatibility – Choose stainless steel for corrosive fluids, PVC for chemicals.
2. Pressure & Temperature Rating – Ensure it matches system requirements.
3. Disc Type – Eccentric discs reduce wear in high-pressure systems.
4. Actuation Method – Manual (lever/gear) or automated (electric/pneumatic).
5. Seat Material – EPDM for water, PTFE for aggressive chemicals.
· Regular Inspections – Check for disc alignment and seat wear.
· Lubrication – Apply grease to the stem periodically.
· Avoid Over-Tightening – Prevents flange damage.
A wafer butterfly valve is an efficient, economical solution for flow control in various industries. Its compact design, ease of operation, and low maintenance make it a preferred choice for water, HVAC, and chemical applications.
By understanding its working principle, advantages, and selection criteria, you can optimize performance and durability in your piping system.
Looking for a reliable wafer butterfly valve supplier? Ensure compatibility with your system’s pressure, temperature, and media for the best results.
