An air compressor is an essential tool in many industrial and home applications, and at its core, the check valve plays a crucial role. In this article, we'll explore what does a check valve do on an air compressor, its importance, and how it functions to ensure efficient compressor operation.

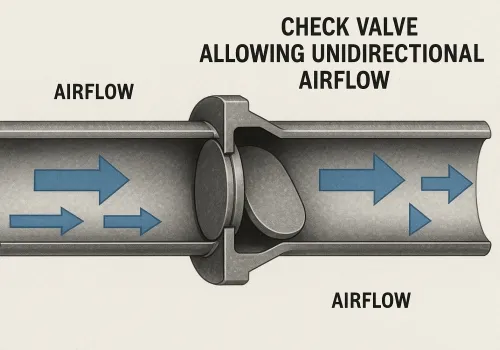

A check valve is a specialized component designed to allow air to flow in one direction while preventing it from flowing in the opposite direction. This simple yet vital function is integral to maintaining the performance and safety of the air compressor system.
1. Preventing Air Backflow: The primary function of a check valve is to prevent backflow of compressed air from the air tank to the compressor. This is critical because it keeps the system pressurized and ensures smooth operation.
2. Maintaining Pressure Balance: Check valves help maintain pressure balance within various parts of the compressor, ensuring that areas that need to remain pressurized do so without interference.
3. Protecting the Compressor: By preventing backflow, check valves protect the compressor components from potential damage caused by reversal of air flow, which can disrupt operation or cause mechanical failure.
The placement and number of check valves can vary depending on the type and model of the air compressor. Here's a look at common check valve locations:
| Compressor Type | Common Check Valve Locations |
|---|---|
| Reciprocating Piston | Piston head (inlet and outlet), between compressor and air tank |
| Rotary Screw | Inlet valve, element outlet, compressor discharge |
| Scroll | Discharge outlet, between stages of compression |
1. Inside the check valve, you'll typically find a disc or ball and a spring. Here's the process:
Allowing Flow: When air flows in the intended direction, it pushes against the disc or ball, overcoming the spring's tension, and opens the valve to allow air through.
2. Blocking Reverse Flow: If air attempts to flow in the reverse direction, it pushes the disc or ball against its seat, assisted by the spring, ensuring the valve remains closed.
Valve Leaks: Sometimes, check valves may leak, particularly at lower pressures. This can often be attributed to wear or debris. Regular maintenance and cleaning can alleviate this issue.
By understanding what does a check valve do on an air compressor, users can better maintain and troubleshoot their equipment, ensuring longevity and optimal performance. Regular checks and maintenance of these small but vital components can prevent larger problems and extend the life of your compressor system. Remember to always consult your compressor’s manual for specific details and guidelines related to your model.
